Caltric Rear Differential Rebuild Kit Compatible with Honda Rancher 420 TRX420FM FE TM TE 2007-2013

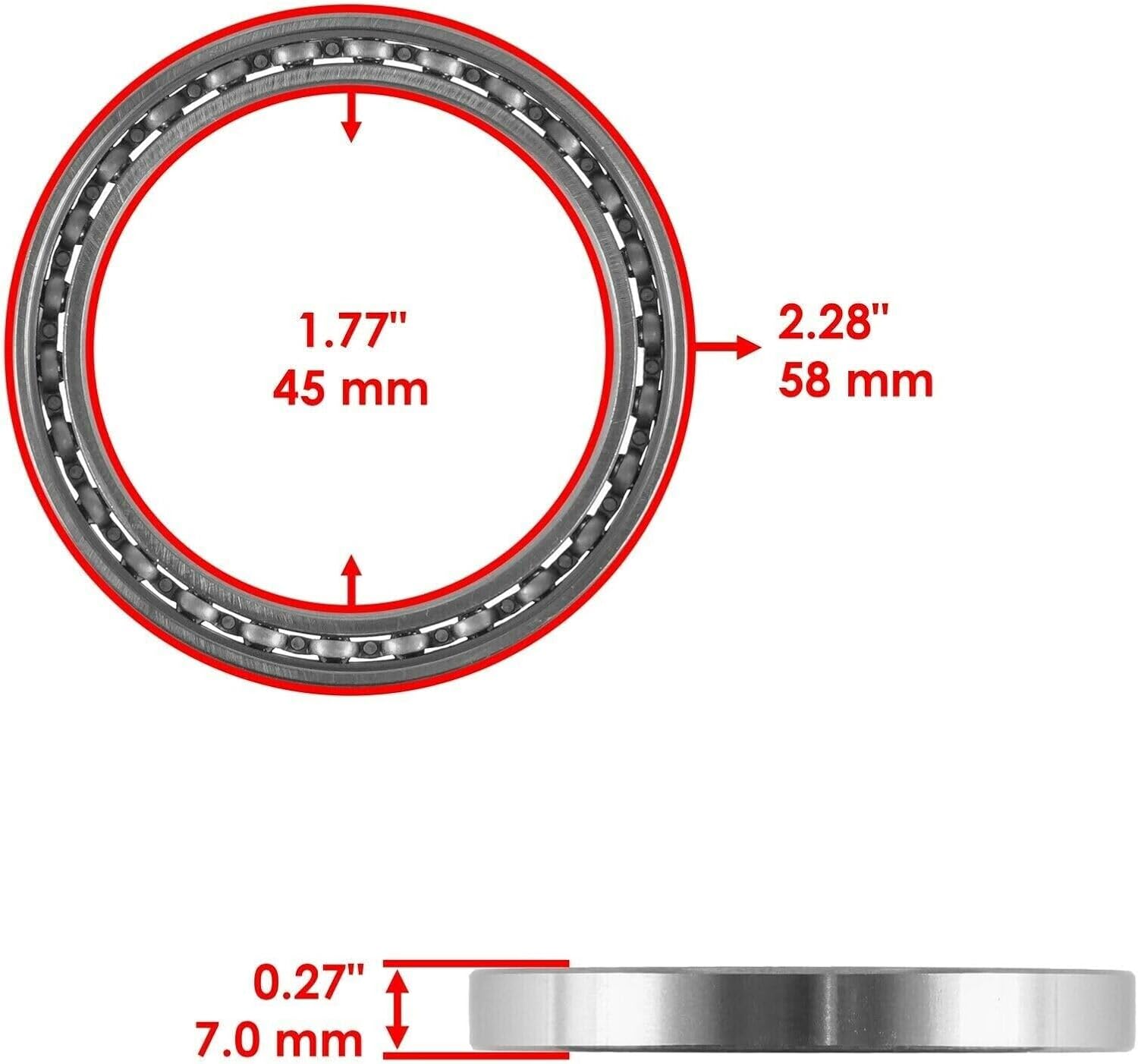

Compatible with Honda models:Rancher 420 TRX420FE 4x4 ES 2007-2013Rancher 420 TRX420TM 2x4 2007-2013Rancher 420 TRX420FM 4x4 2007-2013Rancher 420 TRX420TE 2x4 ES 2007-2013Rancher 420 TRX420FPE 4x4 ES EPS 2009-2013Rancher 420 TRX420FPM 4x4 EPS 2009-2013Part Number and Dimensions:Ring Gear: 41431-HP5-600 41543HA0000 Width: 85.25 mm | 3.35"Inner Diameter: 35 mm | 1.37" Outer Diameter: 145.6 mm | 5.73" 41 TeethPinion Gear: 41421-HP5-600 41421HP5600Length: 67 mm | 2.63" Outer Diameter: 52.1 mm | 2.05" Gear Diameter: 30.8 mm | 1.21"Tube Diameter: 15 mm | 0.59" 20 TeethBall Bearing (6009): 91005-PL9-008Width: 16 mm | 0.62" Inner Diameter: 45 mm | 1.77" Outer Diameter: 75 mm | 2.95"Radial Ball Bearing (45X58X14): 91051-HP5-601Width: 7 mm | 0.27" Inner Diameter: 45 mm | 1.77" Outer Diameter: 58 mm | 2.28" Radial Bearing (6007): 96100-60073-00Width: 14 mm | 0.6" Inner Diameter: 38 mm | 1.5" Outer Diameter: 62 mm | 2.4" Needle Bearing: 06910-HP0-A00Width: 17 mm | 0.67"Inner Diameter: 15.5 mm | 0.61" Outer Diameter: 25 mm | 0.98" Seal (44X63X8): 91255-HP5-601Width: 14 mm | 0.55" Inner Diameter: 43 mm | 1.69" Outer Diameter: 63 mm | 2.48" Seal (42X51X7): 91271-HC4-004Width: 6.5 mm | 0.25" Inner Diameter: 42 mm | 1.65" Outer Diameter: 51 mm | 2" Seal (39X70X11): 91251-HP5-601Width: 11.5 mm | 0.45" Inner Diameter: 38 mm | 1.49" Outer Diameter: 70 mm | 2.75" Ring Gear Shim (1.44): 41663-HP5-600Inner Diameter: 46 mm | 1.81" Outer Diameter: 52 mm | 2.04" Thikness: 1.5 mm | 0.05" Ring Gear Spacer: 41543-HA0-000Inner Diameter: 36 mm | 1.41"Outer Diameter: 43.8 mm | 1.72"Thickness: 1.9mm | 0.074"O-Ring (30.8MM): 91302-001-020O-Ring (75X3.2) (NOK): 91320-HM7-702

• Order Includes: 1 x Ring Gear, 1 x Pinion Gear, 1 x Ball Bearing (6009), 1 x Radial Ball Bearing (45x58x14), 1 x Radial Bearing (6007), 1 x Needle Bearing, 1 x Seal (44x63x8), 1 x Seal (42x51x7), 1 x Seal (39x70x11), 2 x Ring Gear Shim (1.44), 1 x Ring Gear Spacer, 1 x O-Ring (30.8MM), 1 x O-Ring (75x3.2) (NOK)
• Compatible with Honda models: Rancher 420 TRX420FE 4x4 ES 2007-2013, Rancher 420 TRX420TM 2x4 2007-2013, Rancher 420 TRX420FM 4x4 2007-2013, Rancher 420 TRX420TE 2x4 ES 2007-2013
• Part Number: Ring Gear: 41431-HP5-600, 1 x Pinion Gear: 41421-HP5-600
• We strongly suggest comparing the posted picture to the unit(s) that needs to be replaced.
