ESP32-S3 SIM7670G 4G Development Board, LTE Cat-1/W-F/B L E/GNSS Positioning Support, Global Coverage Multi Band, 4G Portable W-F-i, Onboard Camera/Antenna, Solar/USB Charging, 4G Cat-1 Network
$61.43
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by powersafe.co.in
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$61.43
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by powersafe.co.in
Free 30-day returns Details
Product details
| Management number | 212361732 | Release Date | 2026/04/06 | List Price | $24.57 | Model Number | 212361732 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- The ESP32-S3-SIM7670G-4G is a multi-functional and high-performance microcontroller development board designed by Waveshare, built-in SIM7670G 4G communication module, onboard OV series camera interface, TF card slot, RGB colorful LED, 18650 battery holder (18650 battery is NOT included), battery voltage measurement IC, solar panel charging interface, and other peripherals.
- Adopts the ESP32-S3R2 chip, with high-performance Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz. Which integrates low-power W-F--i and BLE 5.0, onboard external 16MB Flash and 2MB PSRAM, built-in hardware encryption accelerator, random number generator, HMAC, and digital signature module to meet the security requirements of the IoT.
- Equipped with SIM7670G Cat-1 4G communication module to achieve mobile network connection and meet the low-power requirements of IoT, mobile devices, outdoor monitoring, smart home, and other applications.

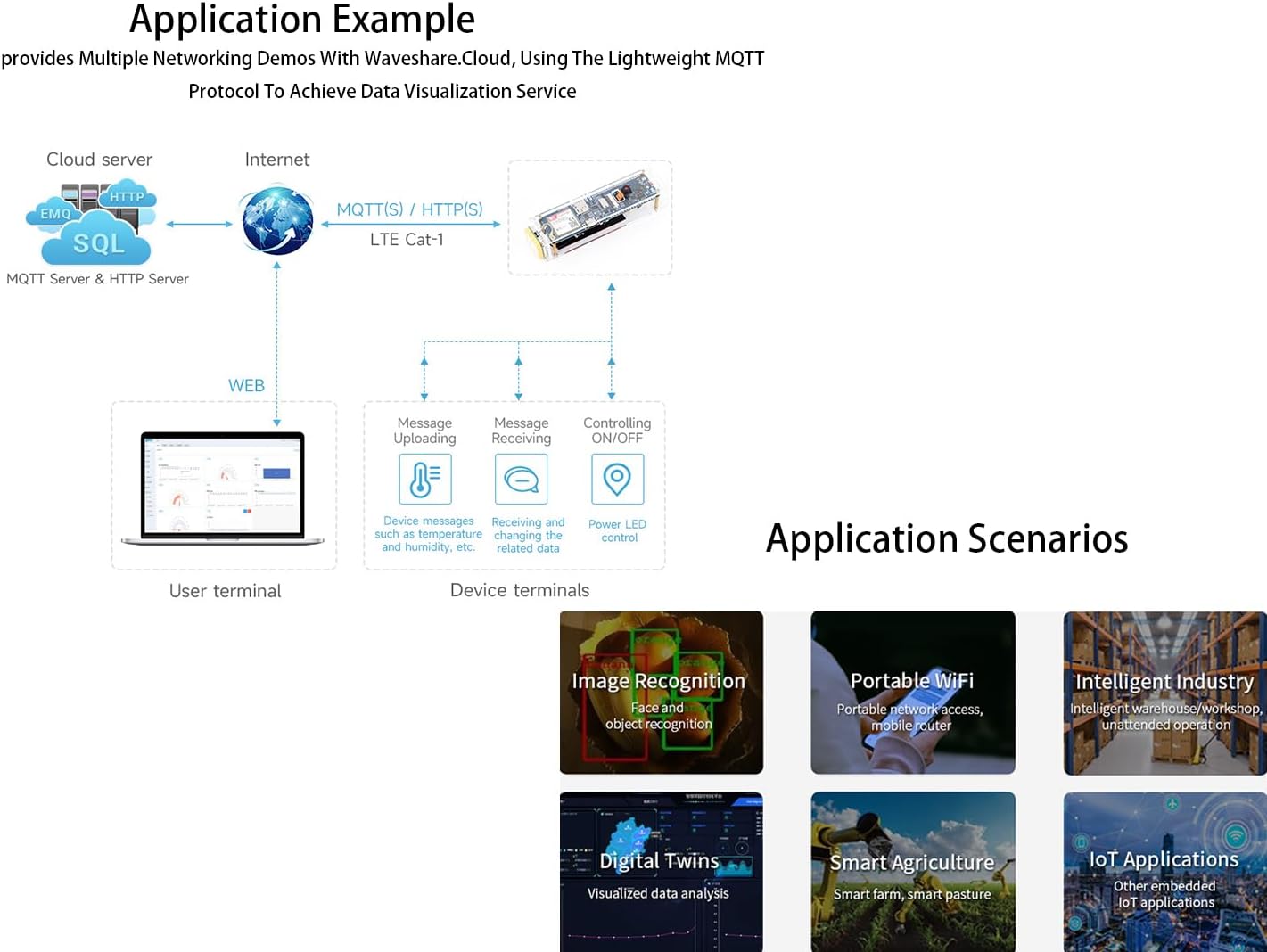

- Provides Portable 4G W-F--i Solution: ESP32-S3 is connected to the SIM7670G via USB to enable 4G networking while simultaneously activating W-F--i AP hotspot, allowing smartphones or other W-F--i terminals to connect and access network

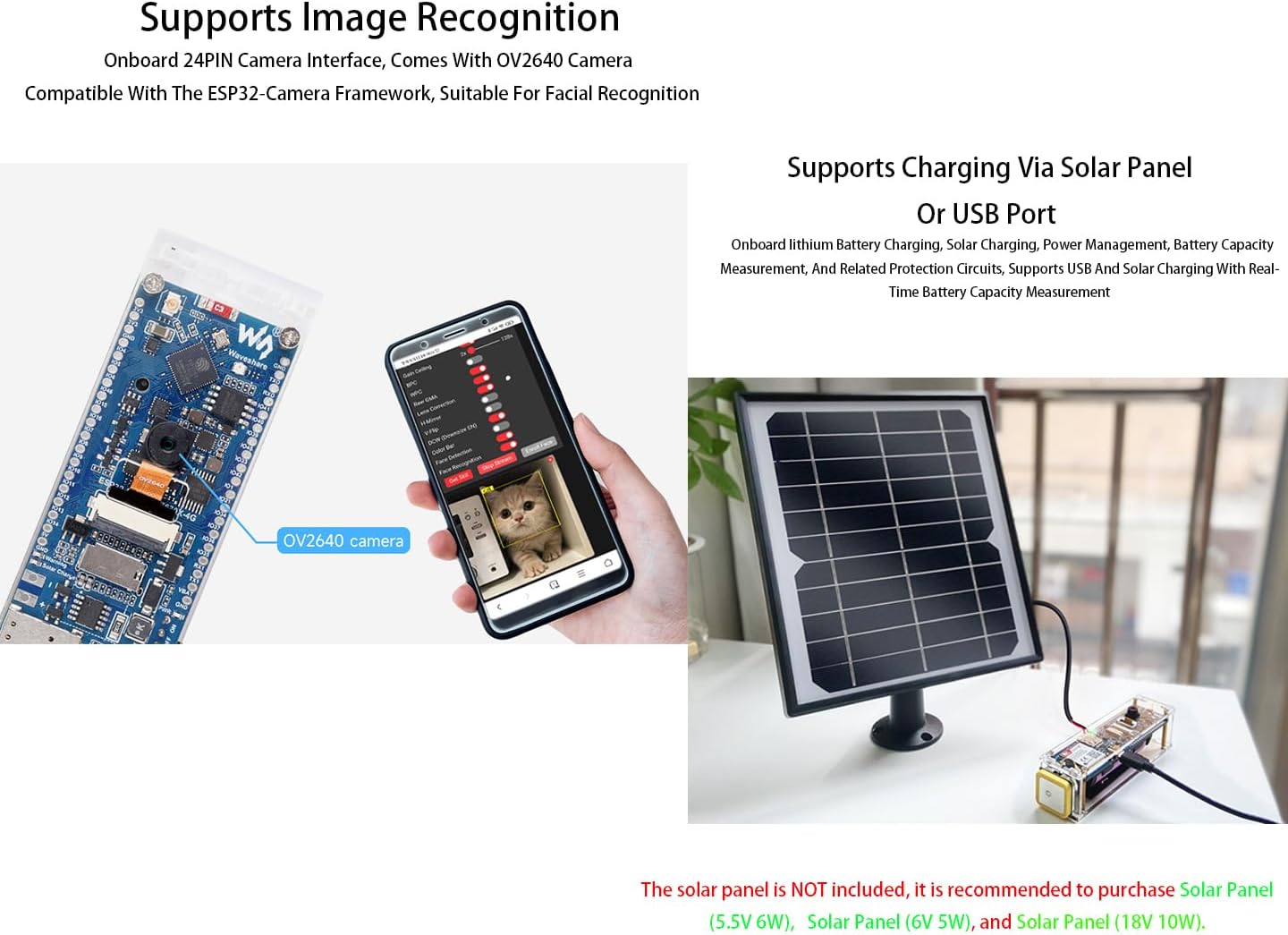

- Supports Image Recognition: Onboard 24PIN camera interface, comes with OV2640 camera, Compatible with the ESP32-Camera framework, Suitable for facial recognition
- Supports Charging via Solar Panel or USB Port: Onboard lithium battery charging, solar charging, power management, battery capacity measurement, and related protection circuits, supports USB and solar charging with real-time battery capacity measurement
- Comes with Online Development Resources and Tutorials to help you get started quickly: bit.ly/3HN8PvI
| Brand | UeeKKoo |
|---|---|
| USB 20 | 1 |
| Platform | Linux |
| Model Name | ESP32-S3 SIM7670G 4G |
| Item Weight | 13.61 g |
| Chipset Type | ESP32-S3R2 |
| Manufacturer | UeeKKoo |
| Model Number | ESP32-S3-SIM7670G-4G |
| BuiltIn Media | ESP32-S3-SIM7670G-4G x1 and other 9 accessories |
| Number of Ports | 1 |
| Total Usb Ports | 1 |
| Processor Socket | DIP |
| Compatible Devices | Computers, Mobile Phones |
| Memory Clock Speed | 240 MHz |
| Warranty Description | Technical Support is provided, please feel free to contact us if you have any problem! |
| Compatible Processors | ESP32-S3R2 |
| RAM Memory Technology | PSRAM |
| Graphics Card Interface | Integrated |
| Memory Storage Capacity | 16 MB |
| Ram Memory Maximum Size | 2 MB |
| Main Power Connector Type | USB port / 5V pin header |
| System Bus Standard Supported | SATA 2 |
