PATIKIL DC 12V 2A Solenoid Cabinet Electronic Spring Lock, (63 x 50 x 13mm, Black) (1 Pcs), Electric Control Lock Suit for - Storage Drawers/Vending Machines/Mailboxes (2 Wires)

Reasons for selection - The electronic spring lock is made of alloy steel, which has high hardness and strong impact resistance. The lock tongue and lock body shell can withstand huge impact forces without deformation or breakage, and can effectively resist external force forced opening, providing high-strength safety protection for precision equipment in the electrical control box and important items in the storage cabinet.Measurement - Length: 63 mm / 2.5 inch; Height: 50 mm / 2 inch; Thickness: 13 mm / 0.5 inch; Package List: 1 Pcs Electronic Spring Lock.Suitable for -After the electronic lock is powered on, the solenoid valve will instantly generate electromagnetic force, driving the lock tongue to retract. The unlocking response time is only 0.1-0.3 seconds, making it very convenient to use. The lock works in such a way that when it is locked, there is no power and the door opens when the power is turned on. Suitable for supermarket lockers, smart express lockers, self-service vending machines, mailboxes, storage cabinets, etc.Installation - Close the locking body to the marked area on the inside of the cabinet door, thread screws through the installation holes of the lock body, tighten and fix it, then fit the lock buckle to the corresponding marked area of the cabinet, adjust the position to ensure alignment with the lock tongue, and fix the lock buckle with screws.Kind tips - Built-in high-strength spring push rod to increase the rebound force of the door opening, and can bounce open doors weighing 0.5-7KG. Please pay attention to matching the rated voltage and rated current (12V 2A) when using.

• Reasons for selection - The electronic spring lock is made of alloy steel, which has high hardness and strong impact resistance. The lock tongue and lock body shell can withstand huge impact forces without deformation or breakage, and can effectively resist external force forced opening, providing high-strength safety protection for precision equipment in the electrical control box and important items in the storage cabinet.
• Measurement - Length: 63 mm / 2.5 inch; Height: 50 mm / 2 inch; Thickness: 13 mm / 0.5 inch; Package List: 1 Pcs Electronic Spring Lock. (Note: There may be some errors due to manual measurement.)
• Suitable for -After the electronic lock is powered on, the solenoid valve will instantly generate electromagnetic force, driving the lock tongue to retract. The unlocking response time is only 0.1-0.3 seconds, making it very convenient to use. The lock works in such a way that when it is locked, there is no power and the door opens when the power is turned on. Suitable for supermarket lockers, smart express lockers, self-service vending machines, mailboxes, storage cabinets, etc.

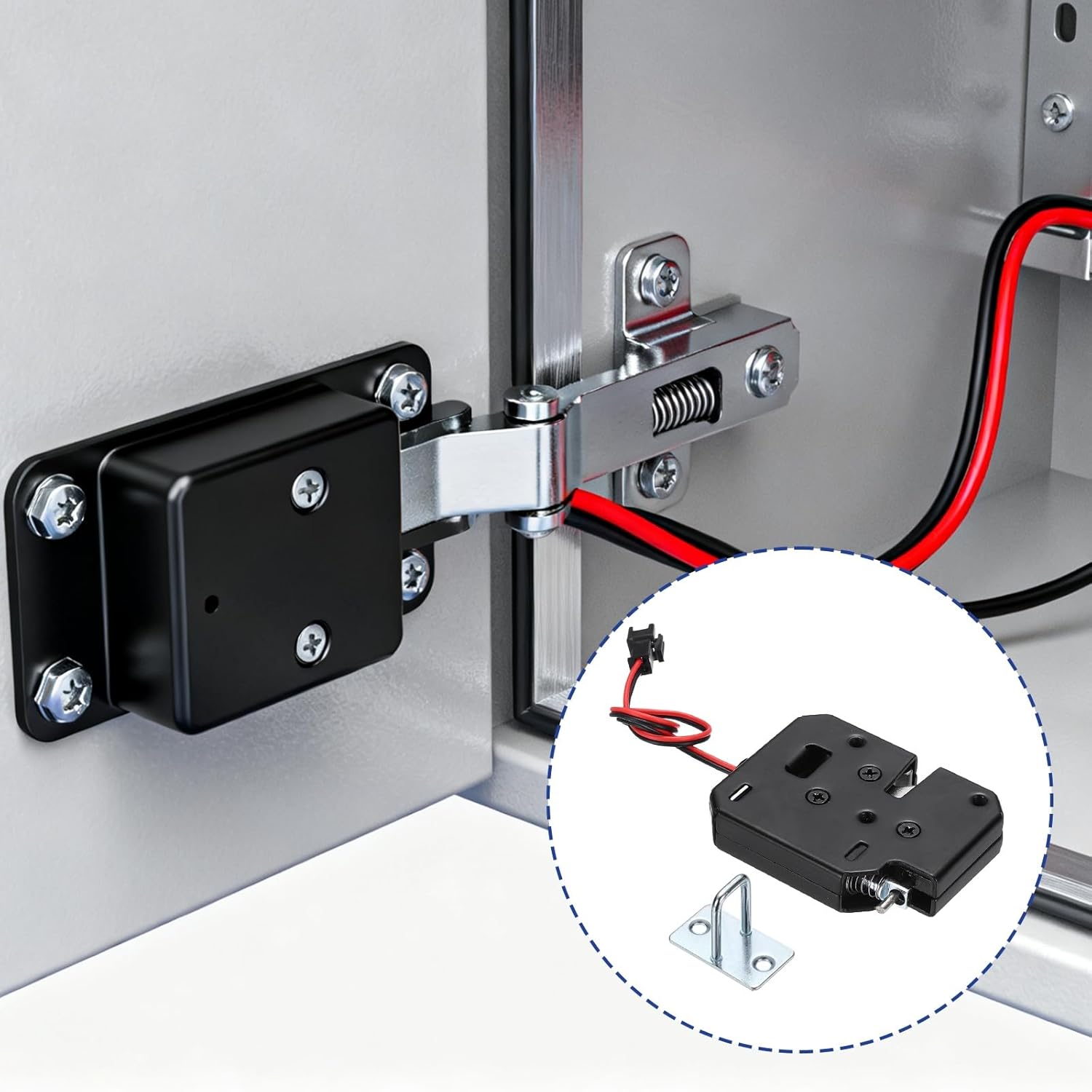

• Installation - Close the locking body to the marked area on the inside of the cabinet door, thread screws through the installation holes of the lock body, tighten and fix it, then fit the lock buckle to the corresponding marked area of the cabinet, adjust the position to ensure alignment with the lock tongue, and fix the lock buckle with screws.
• Kind tips - Built-in high-strength spring push rod to increase the rebound force of the door opening, and can bounce open doors weighing 0.5-7KG. Please pay attention to matching the rated voltage and rated current (12V 2A) when using.
